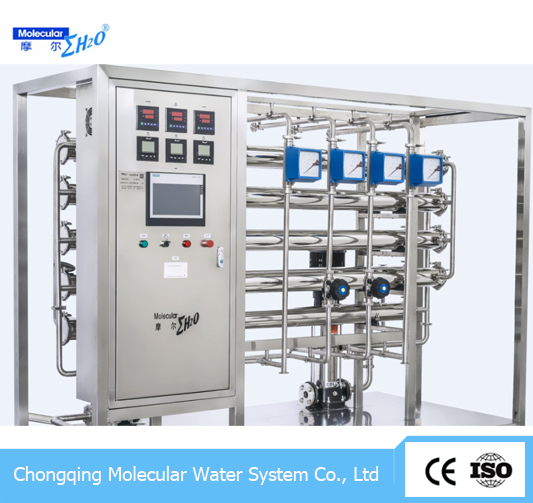

Pharmaceutical purified water system
GMP Purified Water for Pharmaceutical Use
Purified water is widely used for preparation, solution and cleaning process in pharmaceutical industry. It has strict requirement for bacterial and pyrogen. Our PW/WFI system is totally designed according to GMP standard and customer’s requirement,all joints using automatic orbital argonarc welding, whole system can realize fully automatic PLC control and sterilization. Over past decade, we have supply and design GMP or UPS standard pure water system for above 100 pharmaceutical factories.
1. Specifications
- Water Standard
1. Conductivity<2μS/cm
2. Bacteria<100CFU/ml
Application
Sterilization
1. UV sterilizer
2. Pasteurization
3. Ozone disinfection
Typical flow
1. Pre-treatment + Double stages RO
2. Pretreatment+Double stages RO+EDI
3. Pretreatment+Double stages RO + EDI+ Multi-effect distillator
2. Parameter
|
Model |
Capacity
(m3/h) |
Diameter(mm) |
Working pressue Mpa |
Material |
|
MOLPW-250 |
0.25 |
DN20 |
<1 |
Stainless steel |
|
MOLPW-500 |
0.5 |
DN20 |
<1 |
Stainless steel |
|
MOLPW-750 |
0.75 |
DN25 |
<1 |
Stainless steel |
|
MOLPW-1000 |
1 |
DN25 |
<1 |
Stainless steel |
|
MOLPW-1500 |
1.5 |
DN32 |
<1 |
Stainless steel |
|
MOLPW-2000 |
2 |
DN32 |
<1 |
Stainless steel |
|
MOLPW-3000 |
3 |
DN40 |
<1 |
Stainless steel |
|
MOLPW-4000 |
4 |
DN50 |
<1 |
Stainless steel |
|
MOLPW-5000 |
5 |
DN50 |
<1 |
Stainless steel |
|
MOLPW-6000 |
6 |
DN50 |
<1 |
Stainless steel |
